Installation Guide
Step-By-Step
Everything you need to fit your new carpet or vinyl
Open your parcel and verify that all components are included. If you are not installing immediately, remove the carpet or vinyl from its packaging and lay it flat in a clean, dry area. This will help any moulded contours relax and return to their original shape. Avoid leaving the product rolled up for extended periods.
Tools You May Need
Chalk
Kitchen Scissors
Vacuum Cleaner
Basic Hand Tools
Contact Adhesive
Vehicle Carpet Layout

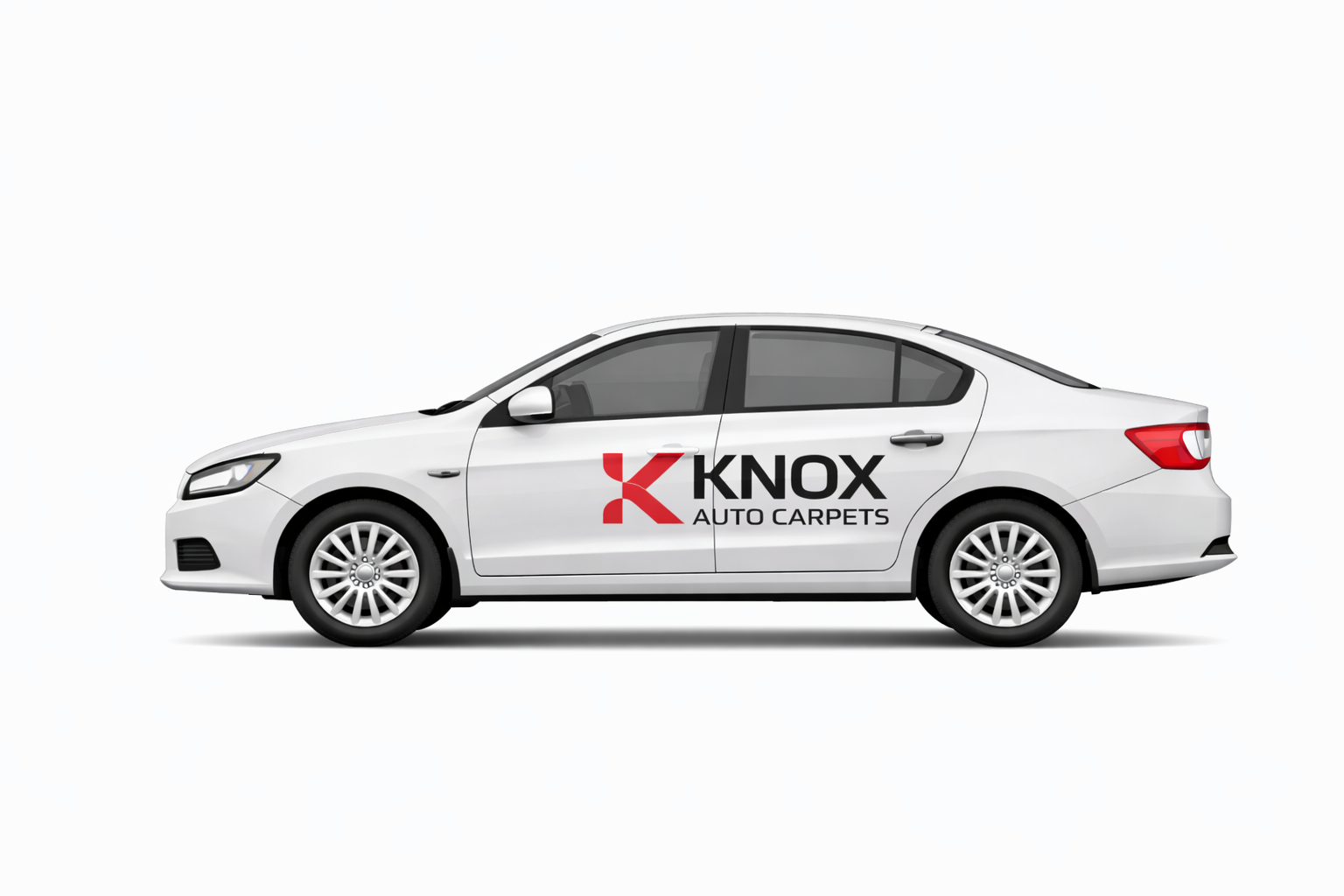

Sedan / Coupe
- Front Carpet: Lays between the front firewall and finishes just behind the front seat mounts
- Rear Carpet: From just behind the front seat mounts (overlapped by front carpet) to the rear seat
- Boot Carpet: In the boot area starting from the back of the rear seat compartment

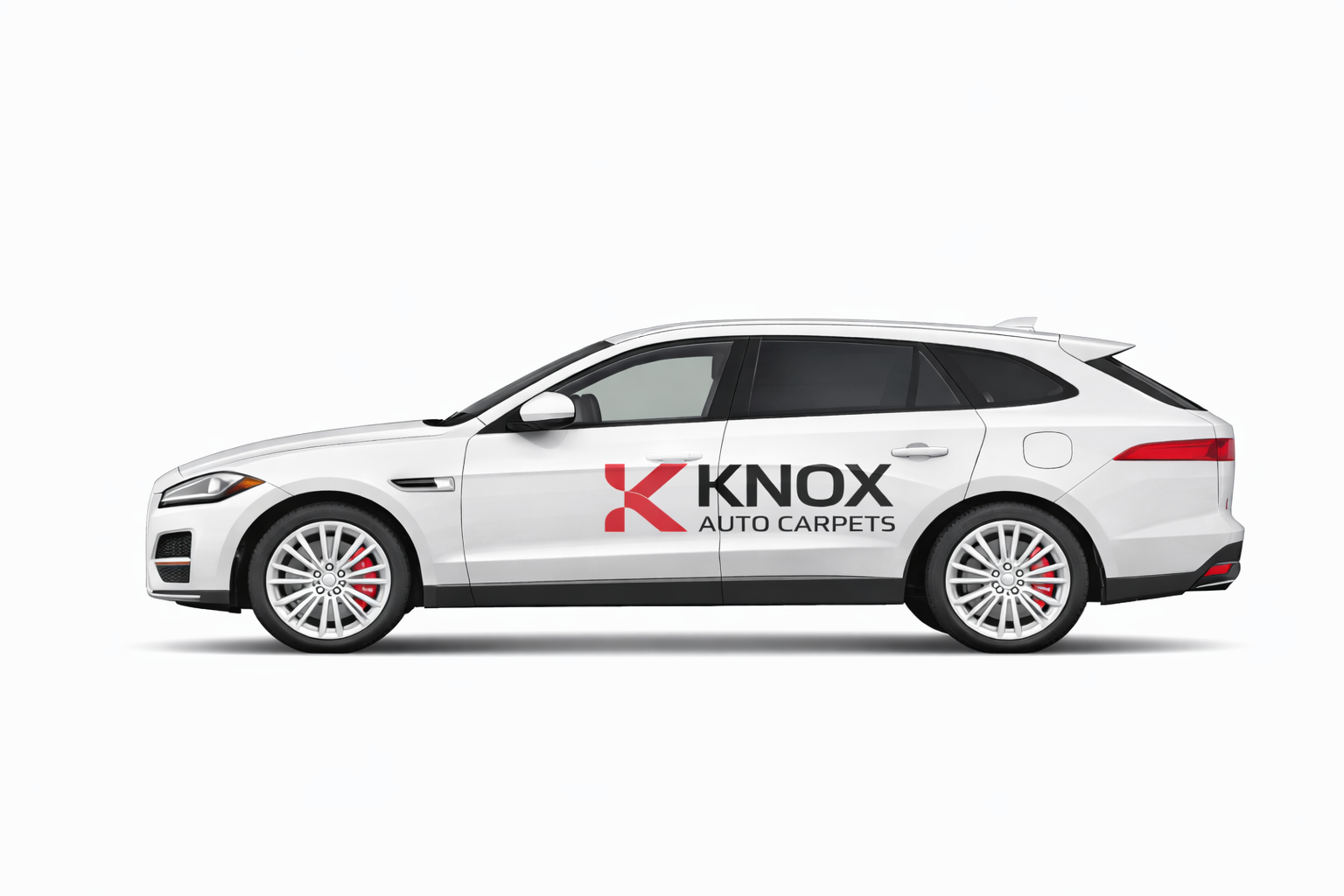

Hatchback / Wagon
- Front Carpet: Lays between the front firewall and finishes just behind the front seat mounts
- Rear Carpet: From just behind the front seat mounts (overlapped by front carpet) to under the seat
- Cargo Carpet: In the cargo area starting from the back of the rear or middle seat

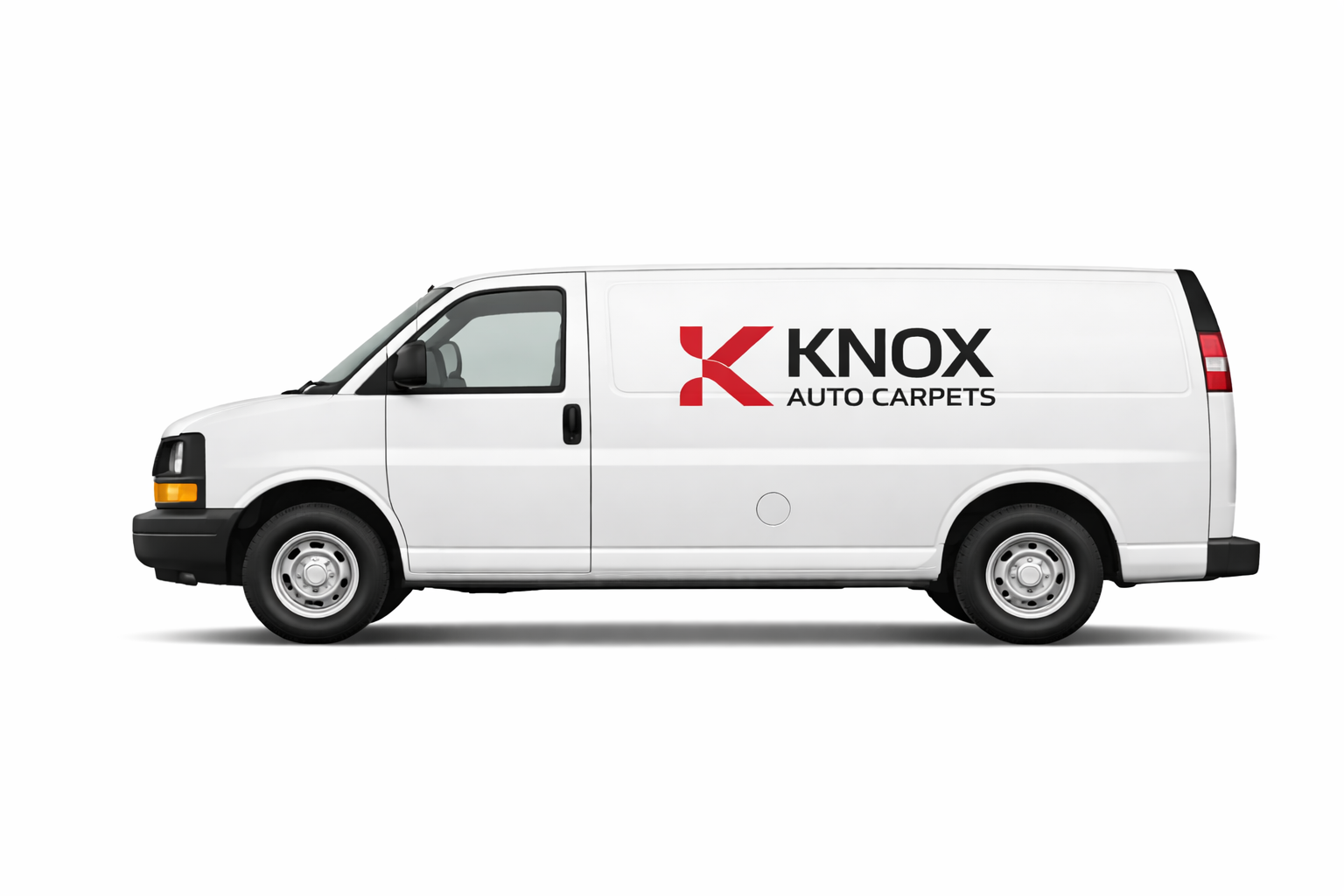

Panelvan
- Front Carpet: Lays between the front firewall and finishes just behind the front seat mounts
- Rear Carpet: From just behind the front seat mounts (overlapped by front carpet) to the back wall

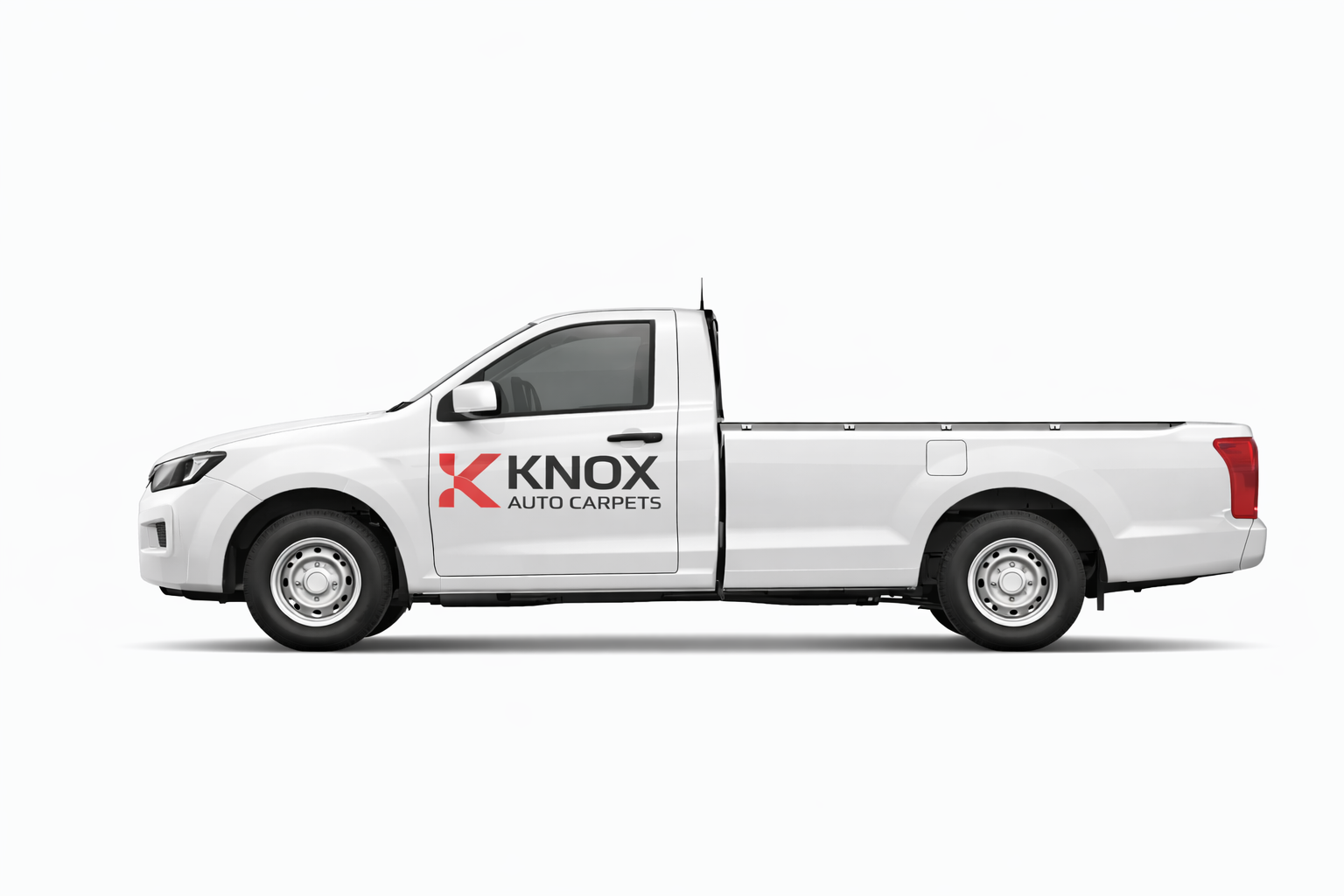

Single Cab Utility
- Front Carpet: Lays between the front firewall and finishes just behind the front seat mounts
- Rear Carpet: From just behind the front seat mounts (overlapped by front carpet) to the back wall
Single cab utes require a rear carpet piece to cover the full floor pan.
Preparation
1
Settle Your New Product
Lay your new carpet or vinyl flat in a clean, dry workspace and allow it to settle before fitting.
2
Remove Interior Components
Remove all necessary components including door sill plates, kick panels, front and rear seats, seat belt bolts, centre console (if applicable), and any trims securing the existing flooring.
3
Remove Old Carpet
Carefully remove the old carpet or vinyl, keeping it for reference during installation.
4
Clean the Floor
Note the position and placement of any existing underfelt before removal. Thoroughly vacuum the floor to prepare a clean, debris-free surface for installation.
Installing Carpet or Vinyl
1
Use Old Carpet as Template
Place the old carpet or vinyl over the new product to use as a reference template for holes and cutouts.
2
Mark Cutouts With Chalk
Mark all holes and cutouts for seats, gear stick, console brackets, etc., using chalk — do not cut yet. Chalk marks can be easily wiped off with a damp cloth later.
3
Install Underfelt
If replacing or reinstalling underfelt, lay it in the same positions as originally fitted, ensuring it conforms to the floor contours and does not obstruct any fittings.
4
Check Pieces
Our carpet or vinyl kits may be supplied in two or three pieces depending on your vehicle model (typically front, rear, and sometimes a centre section). Check the shape and moulding of each piece carefully before installation.
5
Fit Rear Section First
Begin by fitting the rear section first, centring it over the transmission tunnel and working outwards.
6
Install Front Section
Next, install the front section, aligning its moulded contours with the floor pan shape.
7
Cut & Trim
Once aligned correctly, carefully cut out the marked holes using kitchen scissors. Trim edges as needed — pieces are intentionally oversized to allow fit adjustments.
Underfelt Installation
Proper underfelt installation is crucial for achieving the best fit and durability of your carpet or vinyl. Install underfelt in the same locations and shapes as the original. Use contact adhesive — available from Bunnings or Mitre 10 — to secure the underfelt to the base of the floor. Only a few spots of glue are necessary to hold it in place effectively. Ensure the underfelt fits the floor contours smoothly and does not interfere with any fittings or hardware.
Reassembly
Once your new carpet or vinyl is properly installed, reinstall the rear seat base, seat belt bolts, front seats, centre console, door sill plates, kick panels, and any other trims removed during preparation.
Need Help With Installation?
Feel free to contact us — our team is always happy to assist with any questions about fitting your new carpet or vinyl.
